sjenkins

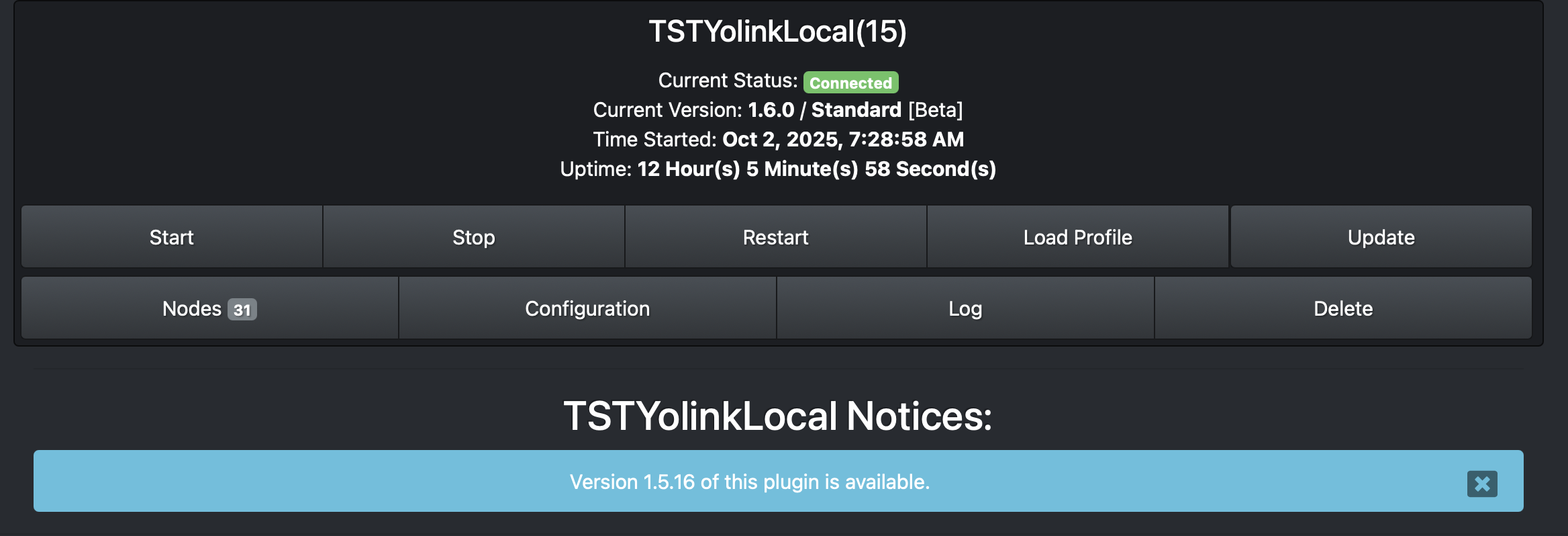

Same, installed the production on top of the renamed non-production v1.5.16 local ; no issues. Have now deleted my cloud Yo-Link, which was in another slot. Had written my programs to handle either local or cloud, now cleaned-up and running off the local. We are in the deep end. Thanks for all your work @Panda88 , Yo-Link devices are now my main Leak, water-valve, temp-humidity, power detection devices. Happy to have them locally based, keeping my tinfoil hat firmly on.

So three new devices, offDelay, onDelay, Toggle as well the ability with the JSON or YAML configuration to set initial default values Take a look at the docs please, I want some feedback if its clear with the "hat" of a new user: README & CONFIG Enjoy; try to break it, and let me know what you think! 3.1.24 DONE configuration based optional override initial default 3.1.23 DONE add onDelay, offDelay switch, update documentation DONE magic number scrub

You are right, about inside the AC & scene triggering. @hart2hart, you are right, I misunderstood the first time. @tazman, glad you like the timers. Sorry, about the new temp default, you are right of course. I will fix that.

@hart2hart, something odd with the Controller adding as a Responder. Only thing I can think off is the profile didn’t take. You may want to reinstall the plugin. And / or reboot the eisy. I can add as responder or controller.

Certainly scenes are a bit of fun; sometimes not in a great way. With the scene you describe above both the switch and offDelay device need to be controllers. Then turning on the switch should start the timer.

@hart2hart, So on the left in my pic, notice I am on the Insteon device controller for the scene, that is why I get the repeat field. You are on the scene itself ; you would get the same if you are on, for example, my offDelay device, or a z-wave device. Scenes are from the perspective of the Controller for the command they send. So if you fire the scene from a program, look at what the scene name sees. If you are firing from an Insteon switch it will send the commands to each of the receivers the way you set it up. So in mine, on the right, this is showing what the Insteon switch is sending to another Insteon switch. You can set the command to whatever you want, default means it just sends pass through whatever the Controller is sending. Makes it possible to send a DOF to one device in a scene. Appoligise if you knew most of all that, but I had treated scenes for a long time just as sending individual level commands, but they can do quite a bit more, if you want. Certain devices have limitations as well. Its why the VirtualSwitch devices wouldn't work in scenes so long, they were just status devices & didn't sent commands. Hope this helps.

This is what I meant by, in a scene, an Insteon controller can set retries. This can be set to a specific number or if the arrow is clicked, to a variable/plugin-value.

I’ll respond to the retry question when I get home with some screenshots. on the ratgdo, I wrote it originally kind of like the temp devices, with variables, because I was running the HA plugin, which communicated to the ISY through variables. Later I added the direct ESP client to this device and I don’t use the variable read/write feature, even tho it’s still an option. Currently it’s very solid, I use it for my main garage door, it integrates well to my programs. Even using an off delay for the light. let me know what you think.

So if you look at the temperature device, that is exactly what it does (one of my nagging questions is "does anyone use those devices that I just rewrote?). Takes/Puts the temperature to a specific variable. Yes it is possible. You also can just about as easily move a variable value in/out the delay (for example) parameter in a program. On the second question, yes you could have the plugin send the DON or DOF more than once based on a variable. If you look at the Insteon commands in a scene, they can be set this way (even from a variable). Unfortunately, normal commands do not have this option. No to the scene it would not know the difference that it came from a plugin.

Based on some of the dialogue on the previous version, this version allows the user in the JSON & YAML configuration versions to optionally override device defaults. This is not just for the new devices but applies to them all, but just certain parameters. Check the docs. FYI, this will only be applied when the plugin/EISY/POLISY is rebooted and/or discovery (just for the new node). I have it AFTER persistence, so it will override that. That is a choice, we may want it the other way around, looking for feedback. Take a look at the docs please, I want some feedback if its clear with the "hat" of a new user: README & CONFIG Enjoy; try to break it, and let me know what you think! VERSION = '3.1.24' """ 3.1.24 DONE configuration based optional override initial default """ 3.1.23 DONE add onDelay, offDelay switch, update documentation DONE magic number scrub 3.1.22 DONE generic/dimmer static/dynamic behaviour 3.1.21 DONE generic/dimmer to model dimmer ST & OL DONE name & address check using poly interface DONE consistent use of poly versus polyglot DONE fix nagging error check in main() DONE controller discover refactor DONE add notice for ISY authorized error (was only in logs) 3.1.20 DONE fix controller ST "status" on at start, off at stop / delete, "control" still heartbeat DONE garage send CMDs, motor, motion, obstruction ; get naming consistent DONE standardize startup sequence DONE rewrite checkParams, Discovery DONE add NumberOfNodes DONE switch/generic/dimmer/temp(R/C): nodes use polyglot persistence, delete old db files DONE swtich cmd TOGGLE add DONE consolidate temp, tempC, tempRC into one module DONE temp variable writing now with shortPoll (only upon change, considers precision) DONE refactor function naming DONE refactor garage, fix persistence, sse client DONE backfeed garage improvements to switch(done), generic(done), temperature()

@hart2hart, I get that setting the variable by program is a PITA if you are not changing it from your initial setting. I'm putting up a new beta v1.3.24 "as we speak" which addresses it, you get the credit as your previous comment triggered me on this one. Basically, why wouldn't we optionally allow the user in the JSON or YAML configuration versions to override the initial defaults? appreciate the dialogue, it makes this thing better as we go.

Appreciate the thoughts @Guy Lavoie The Off button (documented in original post & README), you are right is of questionable usefulness. It will turn the status from On to Off if the toggle is not in one of the two TIMER statuses. The reason for not using a specialized Start button is scenes don't play well will that. DON, DOF, DFON, DFOF, and sometimes OL, are really your only command options. From what I have seen so far you are mainly a program guy, but @Diesel is mainly a scene guy. So in the design of these devices I have tried to bridge the gap, make it useful for both, as well as keep fairly standard to how the Insteon devices operate. I did think about another toggle to start off, but could not really think of a use case which I couldn't achieve with a wait statement or a thoughtful set of triggering. I would like to keep this clean & not add complexity if it doesn't fill a defined gap. Hope that helps.

@Guy Lavoie, You’ve got it. So my next question is, I documented that in the readme (above, first post), would you have gotten that from my text? I basically did it as a list of if’s when you switch it, or change status. As opposed to your story method.

ok @Guy Lavoie, @hart2hart, fixed the simple issue. Please keep trying to break this. I also, to @hart2hart, thought that it might be useful to be able to define in the json or yaml starting numbers. I have not pushed the commit, but will test a bit and roll that as a minor change to the beta. The docs are also being written as I go here. Please take a look and give some feedback with the hat of a new user.

Sorry, I’ll fix the simple version tonight. My bad. the colon is being stripped by the polyglot device name function. its newish & must not like colons, I hadn’t back factored to the earlier devices. I’ll check with udi and see what they think on this.

Thanks, I’ll add that tonight. as well need to add more to my testing routine 🫢🙈

Thanks , good to hear all is well, looks like the install.log is happy as well. I might have over engineered the solution and just needed to peg the version so it doesnt try to compile a new one.

@GTench, Putting this here, so that if others are interested they can check their install.log (if you don't know what I mean and don't have any issues, don't worry about it) I did notice something in your install.log where the aiohttp was failing to pip install. Seems it's a thing in freebsd in certain cases, but as its part of the "optional" bits of aiohttp, it seems to not affecting the running plugin. I do not know why it's good on mine and not on others. Anyway, based on my research, I made some changes to my requirements.txt and added a precompiled version in vendor-wheels directory. Would you mind installing from the non-production store into a separate plugin slot. You don't need to add any configuration. Let it go for about 5 minutes and pull the logs from the plugin log tab. The install.log will have what I want. Hoping this solves that issues & doesn't create any others. You can delete the plugin after that. Thanks!

Well I don’t disagree, sometimes a scene just seems to work. Also the nice thing in a scene you can often set it to try more than once right in the command setting.

@Guy Lavoie, I completely get it, it’s my wife that doesn’t ;). (Actually she is very gracious). I do similar things in my progs with the “bump” times. So take a look at my description of the onDelay, it can simplify the moving from one scene to another. Different paradigm but we can get to the result and simplify too. So in my example I go from a high level at my bar to the normal level after a period of time. Well if you wanted to “bump” the time you can either change the delay value and bump the timer or have a second timer. This would give you your initial and bump times. I guess my point is this is not just for non-programmers, I wrote it (like you did for timers) to clean up the non-value added countdown programs & leverage scenes. I am interested if there are features that would enable what you are doing more. good discussion, thanks.

Hey @hart2hart, You can create this node in any of the three config methods (I did update the config text manual) but right now I don’t have it where you set the delay there (I could add to my todo to have an initial value field; if that would be value add). You can pull the device up in the AC or eisy-ui and manually enter it. Or you can make a small program which runs on startup to load the device delay. You also can change the delay time when you like; the delay would be effective on the next On switch. so json: 82 {"type": "offdelay", "name": "office lt offDelay"} would work. you are correct on your thoughts on scene usage, in the scene add the switch as a controller, the fan as a responder, the off delay as a controller. when the switch turns on, the fan comes on, onDelay receives DON and after delay seconds, sends DOF to the scene and shuts it off. Depending on the device or devices in the scene you may want to modify the command offDelay sends to each device in the scene. hope this helps. read the README in the GitHub (link in config file which you see on the config tab in the plugin. Ask any follow-up questions here, anytime.

@Guy Lavoie, you made me smile ; good to have a kindred spirit out there. ( was once a controls engineer, from Canada, born in Montreal) So these ones have the added advantage of being able to be part of a scene. So your above program could be replaced by a scene. ========= Toilette Fan Scene Toilet Fan (responder) Toilet Fan offDelay(control) {switch and/or motion device which starts the fan} (control) with Toilet Fan offDelay DUR set (either manually or with a program) to how many seconds to keep on (600 if you want to be conservative for a 10min clearing of the air) =========== OR: you can use it in a program like your example above but after you switch on the offDelay the prog is: if: Toilet Fan offDelay is switched OFF then is: Set or Switch Toilet Fan OFF ============== would need a simple program to fire the offDelay: if: {switch and/or motion device which starts the fan} switch ON then: Toilet Fan offDelay switch ON ============= As I mention in the docs, I did not include a variable which tracks the countdown. Much more overhead than the Threading Timer structure. These three should cover 90% of use cases. Open to talk about those 10% though. Using these devices I have started replacing the variables and programs which simulate timers across my house. I am about half way in and have wiped out dozens of them. Helps with readability & maintainability.

Pre-amble: When I started with my shiny new 994 over 10 years ago I was struck with something missing. The environment was familiar, with a state machine controlling I/O. As a young engineer almost 40 years ago I did my share of PLC programming. Scenes were new, but made sense. But the timers were missing. From relay logic days or PLC ladder logic, I was missing my on / off timer relays. I use timers all over the place on my (994, Polisy, Eisy) and always considered them a bit of a PITA to set-up and maintain. Turn-on a light group which I want to turn off in 10min takes a scene, static variable, set the init so you have persistence, then usually have a program for LightON, LightCountdown, LightOFF, depending on the trigger conditions. So, sorry for the pre-amble but that is why these three new devices exist. Virtual offDelay, onDelay, Toggle Please try them out, see if the behaviour is how you would like ; try to break them! EDIT: lots of profile changes here, so may require a reboot if your labels are not coming up right, especially with new AC and EISY-UI. From the github README: Link added here (note, the README is not the plugin CONFIG file which contains config pointers) let me know of any doc improvements. I tried to up the game a bit on them. offDelay switch Usage: Replaces programs simulating timers used to switch scene off after delay time. For example you turn on a light scene which you want to turn off after x-seconds. The scene is switched on by a switch/program & fires offDelay, after x-seconds the scene is turned off. if Switched: On (DON) when ST Off/On, ST status set to TIMER, CMD (DON), after DUR (DOF). On (DON) during ST TIMER, reset the time, CMD (DOF) sent AFTER DUR seconds. Off during TIMER, ST status changes to Off, CMD DOF sent immediately. Fast On / Off mirror On / Off Set: delay (DUR) to delay seconds for switch, after CMD DON wait to send DOF. range 0 - 99999 seconds which gives you more than 24 hrs. if 0, mostly acts like a regular switch. Status: Off(0), On(1), TIMER(2) When plugin is stopped, if ST is TIMER, ST will be set to On for persistence. Using Thread timers to fire switch, so for now I am not showing a status of how long left in the timer. Trying to keep a low overhead. onDelay switch Usage: Replaces programs simulating timers and scene trigger for transition from one scene to another. For example you turn on a high level light scene which you want to transition to a normal level later. Use two scenes, one High, one Normal/Low, switch on High for x-seconds, after delay then transition to Normal/Low. High scene: onDelay is Responder, set delay (DUR) to x-seconds Normal/Low scene: on Delay is Controller in Normal scene, sending appropriate commands to each device. If switched: On (DON) when ST Off/On, ST status set to TIMER, CMD (DON) after DUR delay. On (DON) during ST TIMER, reset the time, no CMD sent until DUR complete. Off (DOF) during TIMER, ignore until TIMER done. Off (DOF) when ST Off/On, ST status set to Off, send DOF immediately. Fast On (DFON) behaviour is equivalent to on (DON). Fast Off (DFOF) anytime to set ST status to off, CMD (DFOF) sent immediately; this method to cancel is used to allow use and control in a scene. Set: delay (DUR) to seconds switch will, after receiving DON, wait to CMD DON. range 0 - 99999 seconds which gives you more than 24 hrs. if 0, mostly acts like a regular switch. Status: Off(0), On(1), TIMER(2) When plugin is stopped, if ST is TIMER, ST set to On for persistence. Using Thread timers to fire switch, so for now I am not showing a status of how long left in the timer. Trying to keep a low overhead. toggle oscillator Usage: Replaces anywhere you want a scene to oscillate On/OFF. It does not need to be balanced, so allows you to be Off for long periods and On for a short one. Can of course be used to trigger programs on a regular interval as well. An obvious example is blinking Christmas lights. Another would be for attention getting or security flashing. Firing a program at regular intervals can be pretty useful. If switched: On (DON) when ST Off/On, ST status set to onTimer, CMD (DON) immediately. On (DON) when ST onTimer/offTimer, timer reset, CMD (DON) immediately. Off (DOF) when ST onTimer/offTimer, no effect. Off (DOF) when ST Off/On, ST status set to Off, CMD (DOF) immediately. Fast On (DFON) same as On (DON). Fast Off (DFOF) all ST, ST set to Off, CMD (DFOF), cancel further oscillations; this method to cancel is used to allow use and control in a scene. Set: onDur (DUR) to seconds switch will, after sending DON, wait to CMD DOF. offDur (GV0) to seconds switch will, after sending DOF, wait to send DON. range 1 - 99999 seconds which gives you more than 24 hrs for each On / Off if either timer <= 0, it will be reset to 1 Status: Off(0), On(1), onTimer(2), offTimer(3) When plugin is stopped, if ST is onTimer, ST set to On for persistence. When plugin is stopped, if ST is offTimer, ST set to Off for persistence. Using Thread timers to fire switch, so for now I am not showing a status of how long left in the timers. Trying to keep a low overhead.

Good news! Interesting that they are starting up at such a different speed. I learned something on this one. The timer should be significant anyway, well out on the normal curve, as its just to flag if something isn't right. ok, please stress test the plugin. I don't currently have anything else in the development pipeline. (although my logging could have been better in this case). If anyone has features they would like, toss them out for discussion.

The logs look quite clean & without error except for a timeout in start-up gathering parameters, but they are ok too. It looks like the startup is taking longer on your machine than the timeout allows, which is why the messages. I think you are on a Polisy, correct? That may be why its a it slower. I have raised it & pushed to production. Please re-install the production version in the same slot as your current & let me know how it goes. thanks again for your patience....
